F-105D Thunderchief 480mm (30mm edf)
Published: September 29, 2026
downloadsImmediately after payment, you’ll receive your download link in your order confirmation, on your order status page, and via email.

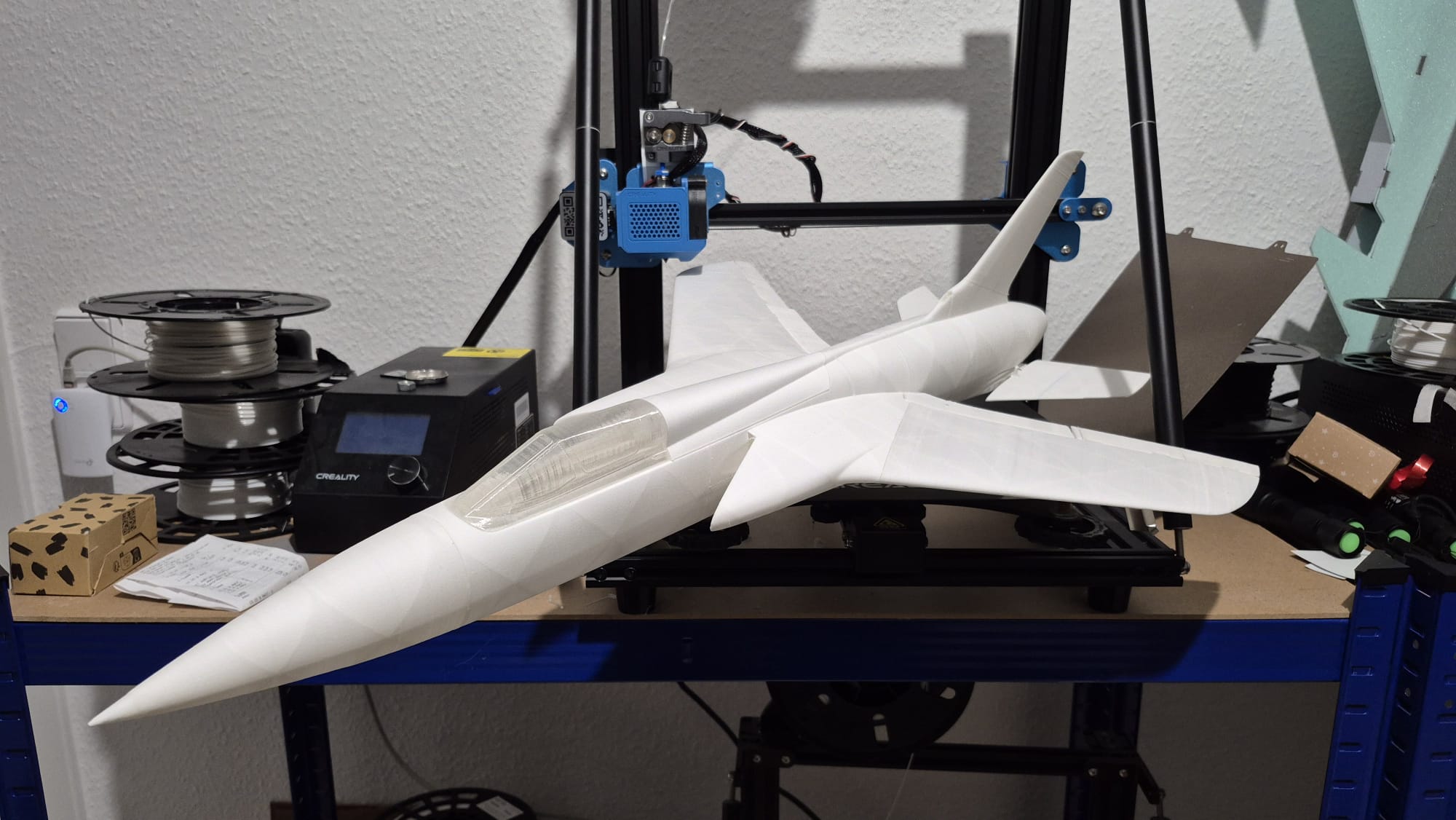

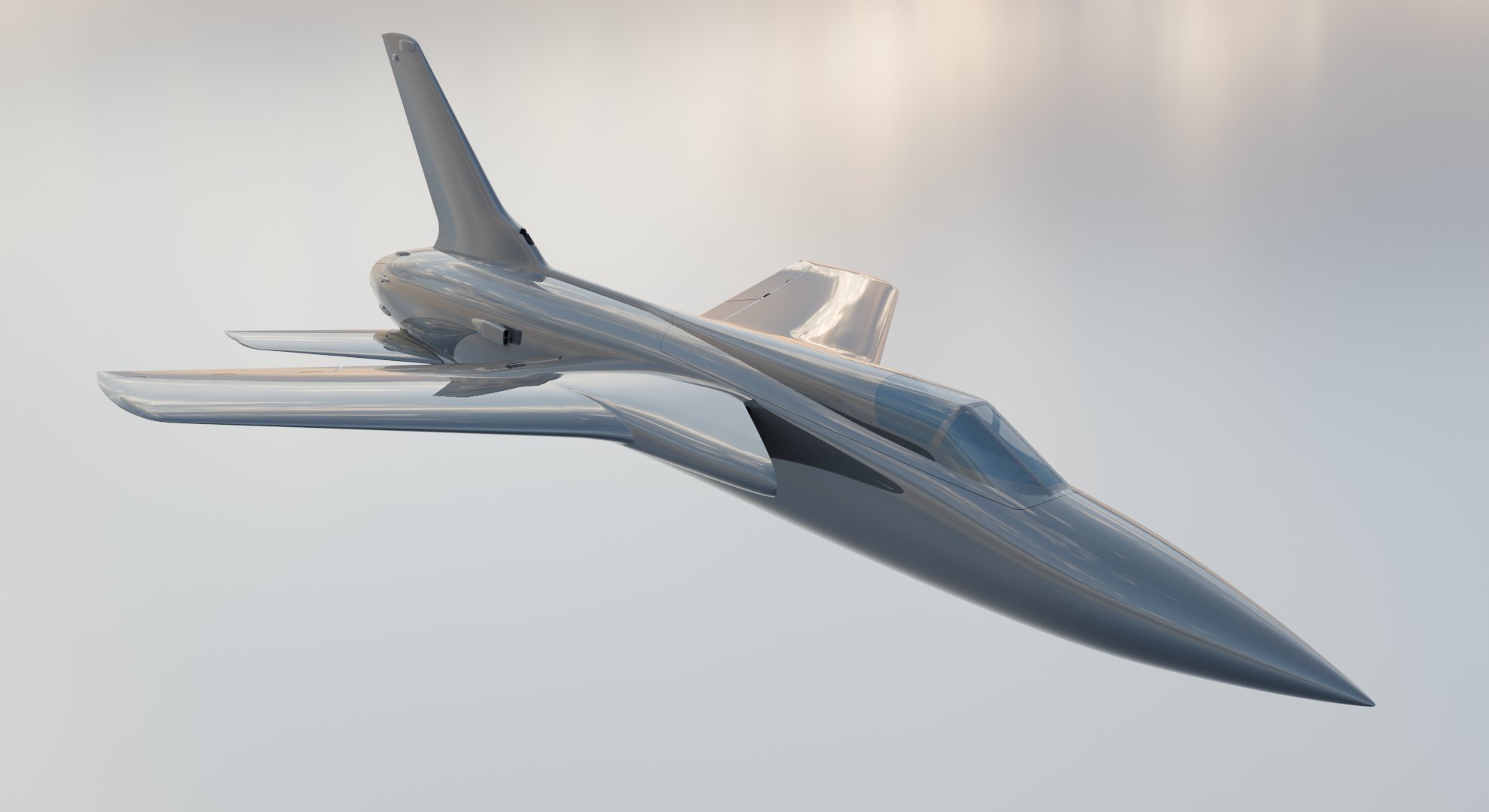

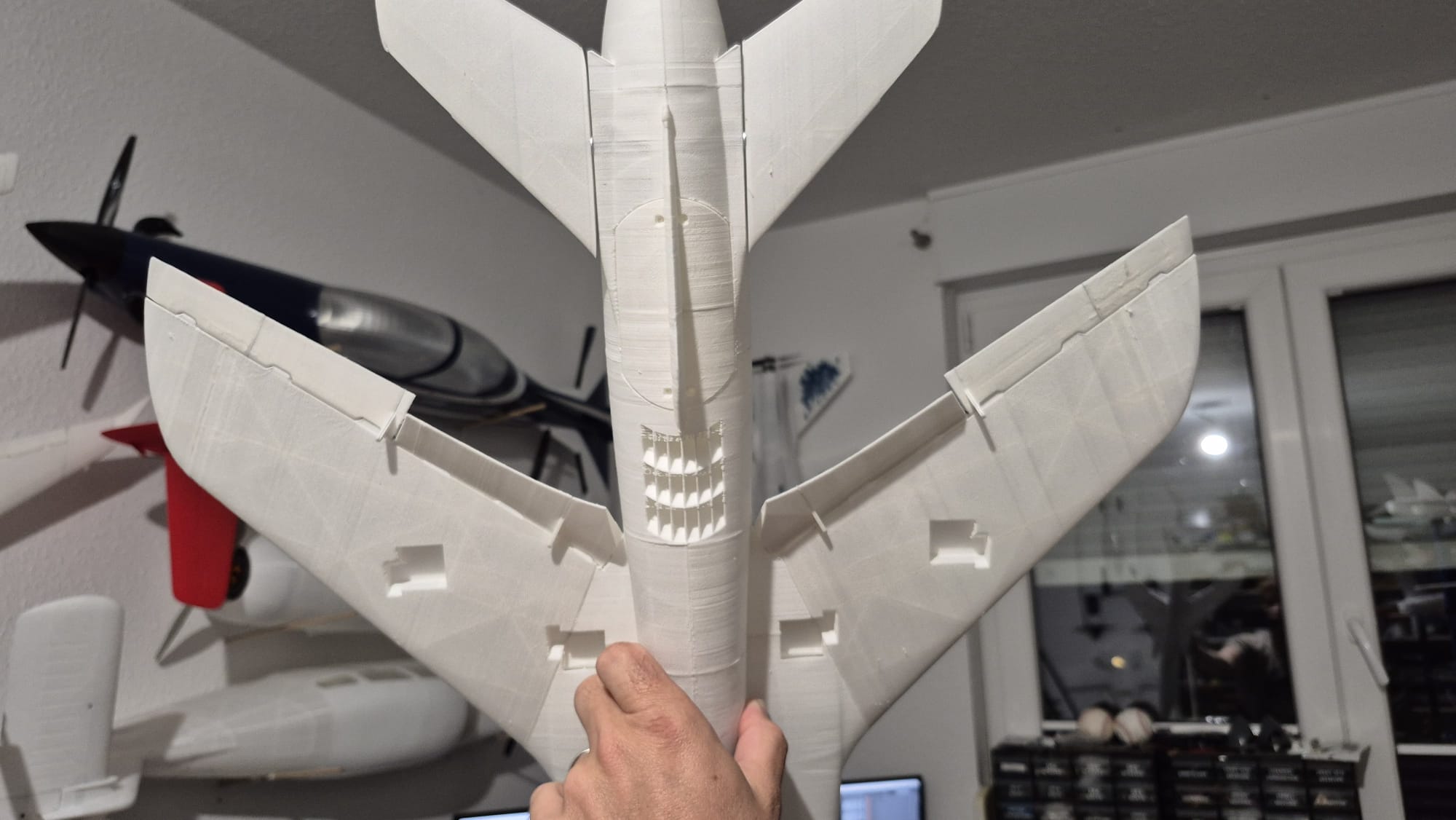

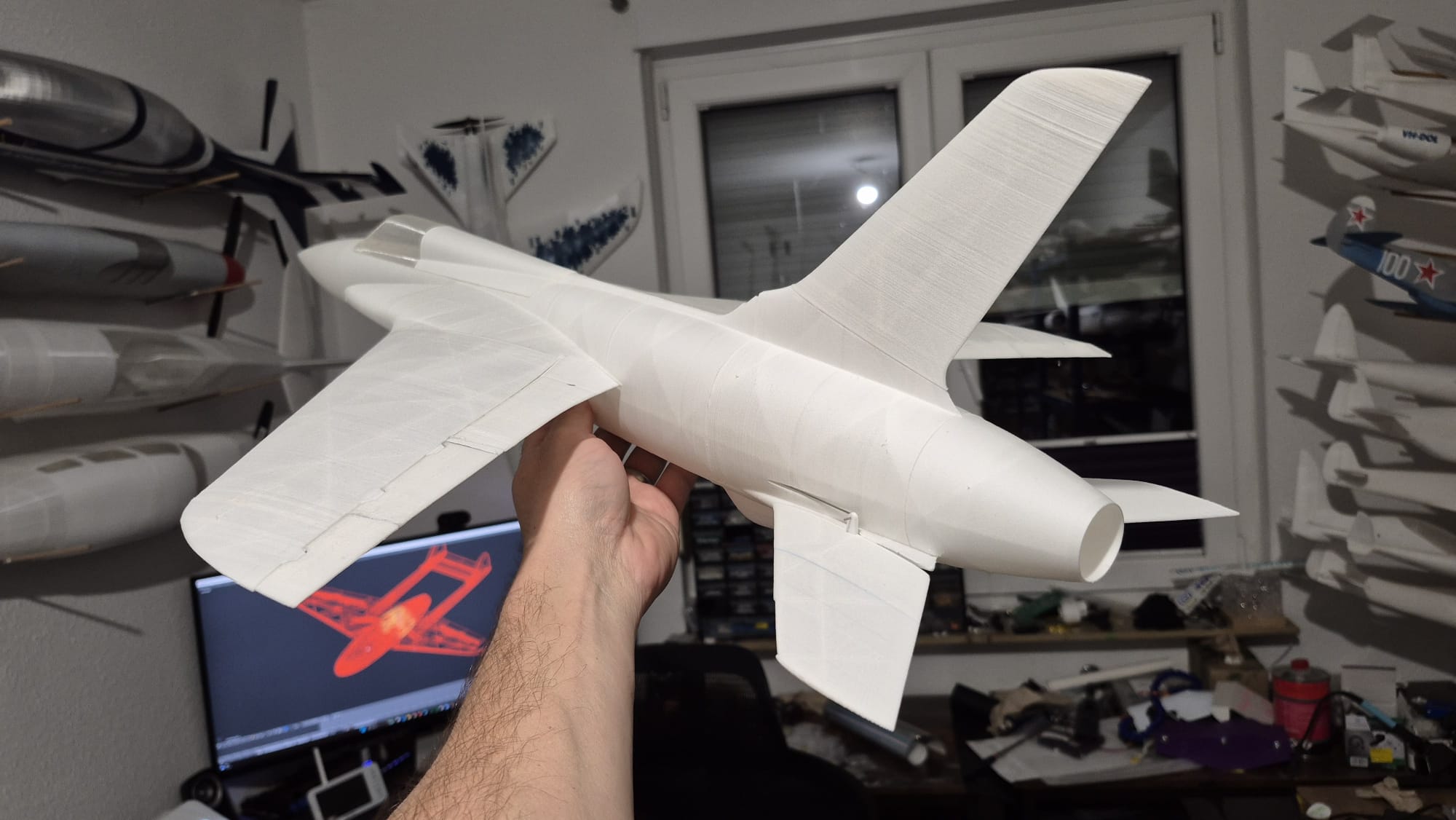

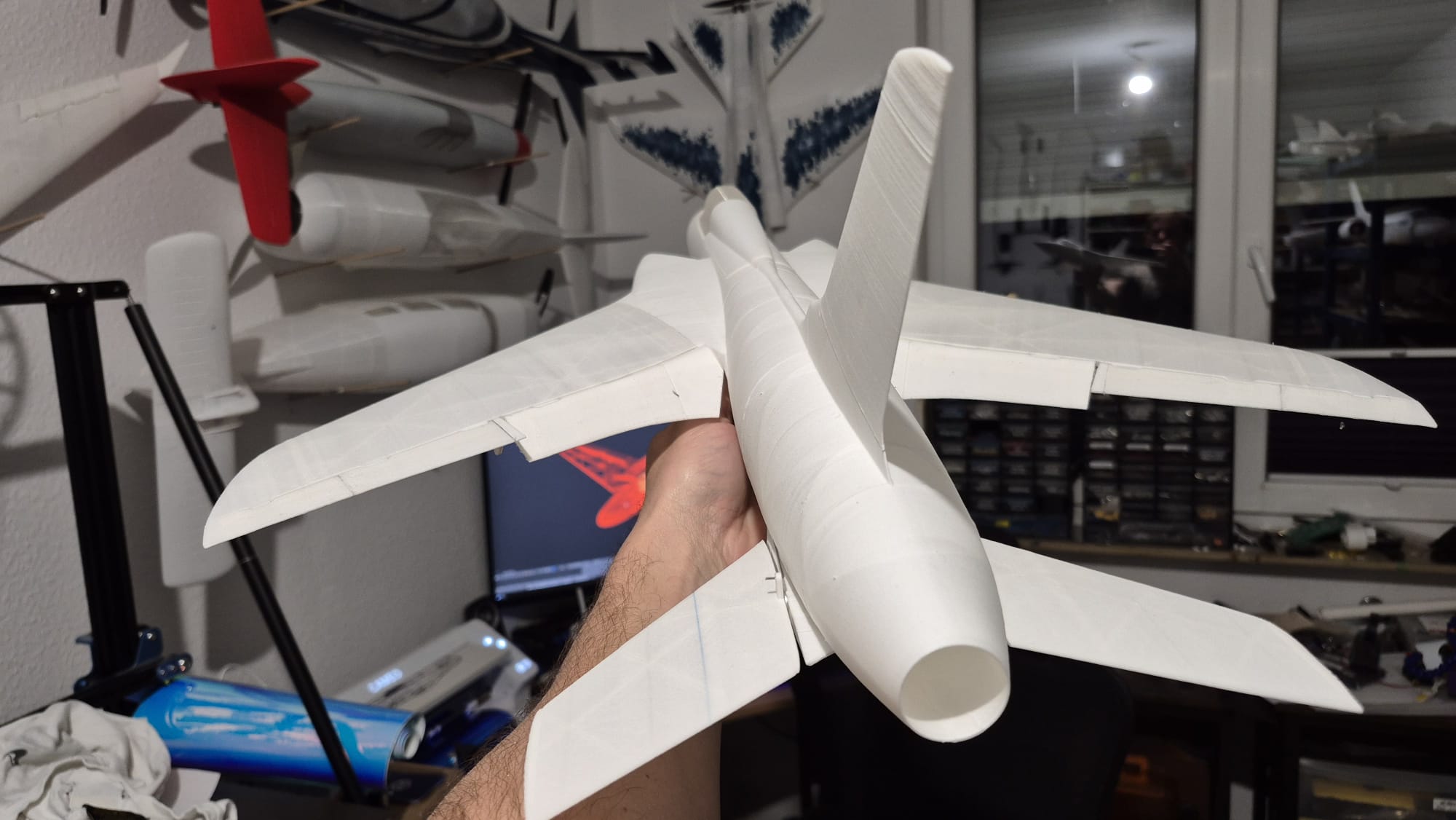

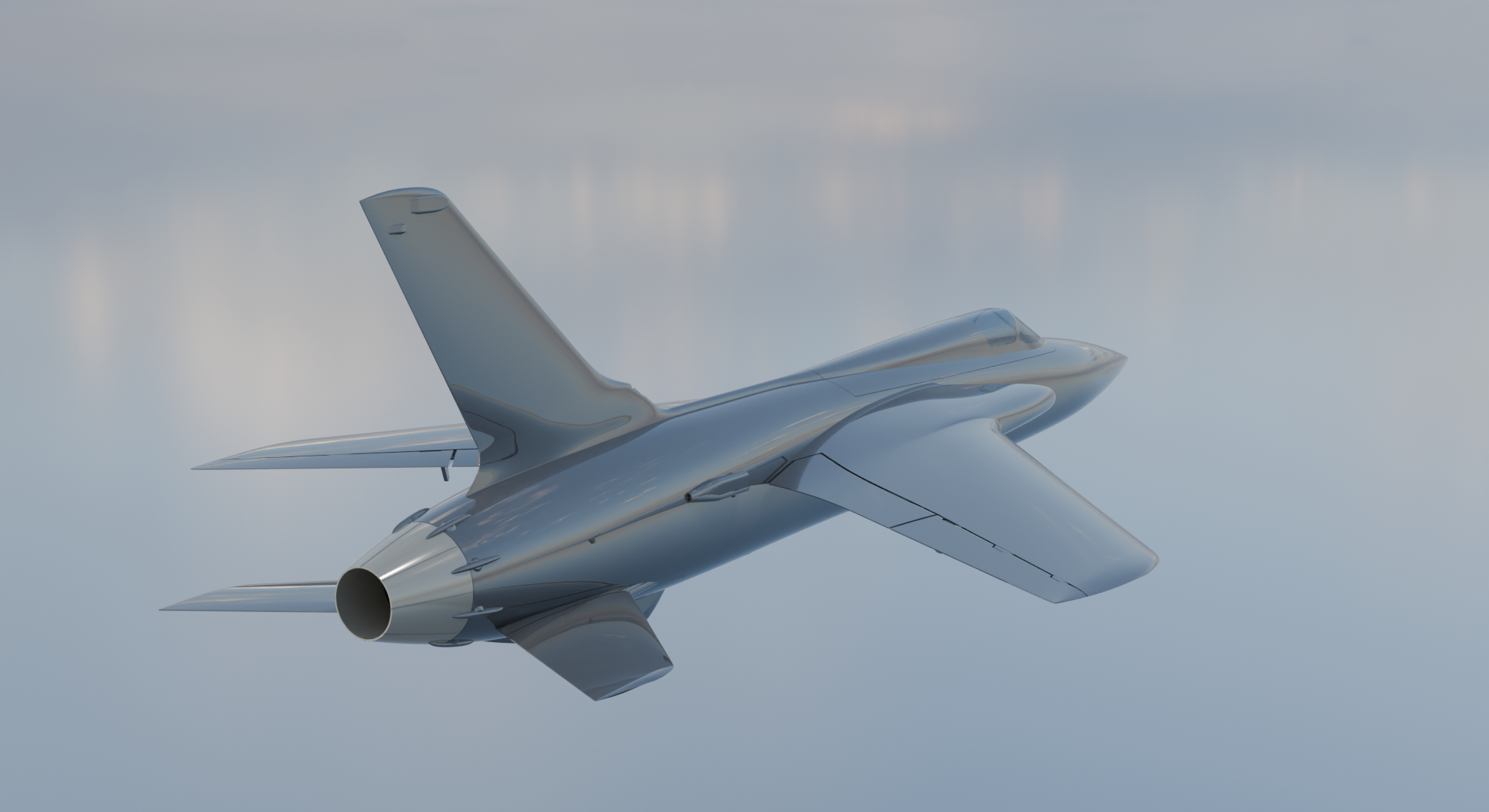

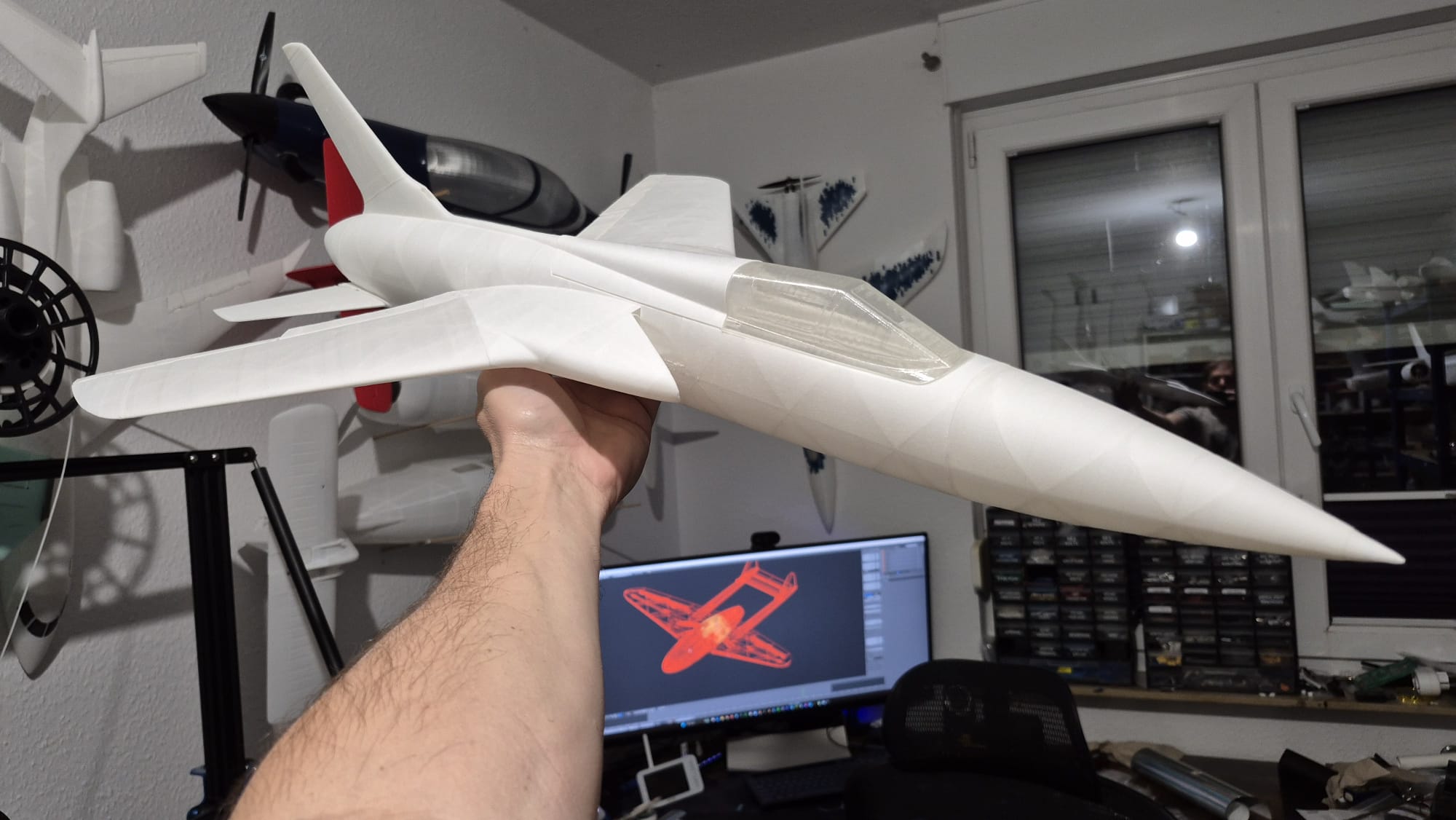

This replica of the F-105D Thunderchief is designed for quick and easy construction, printed using lightweight PLA (LW-PLA) and regular PLA. Designed to suit the QX motor 30mm edf 6000kv. Utilizing 4 channel controls; Aileron, Elevator, Flaps and Throttle along with the powerful combination of a 4s power system, this model holds a fantastic presence in the air and is fully capable of scale aerobatics maneuvers such as; Loops and Barrel-rolls. Whilst normally reserved for larger models, the addition of flaps significantly slows this model to assist landing. Links to components used can be found on the last page of the user guide.
Official flight video:
https://www.youtube.com/watch?v=Hglb8_696As
GENERAL SPECIFICATIONS:
WINGSPAN: 480mm
PRINT WEIGHT: 220g
FLYING WEIGHT: 380g
ELECTRICS:
MOTOR: QX motor 30mm edf 6000kv
ESC: 20amp
SERVOS: 3.7g MICRO
BATTERY: 650mah 4s
INCLUDED:
Factory files for Simplify 3d
G-code files
STL files for all components
Detailed assembly manual and user guide
Print settings guide
REQUIRED TOOLS:
KNIFE
LIGHTER
SANDPAPER (MEDIUM GRIT 320 recommended)
PLIERS
CA GLUE (super glue)
SCREW DRIVERS
FILE OR RASP
SOLDERING IRON (led version)
DRILL / BITS (1mm, 2.5mm, 3mm)
REQUIRED COMPONENTS:
X1 QX-motor 30mm edf 6000kv brushless outrunner
x1 15 AMP ESC
x1 650mah 4s - 850mah 4s (65g - 85g)
x5 3.7g servo
x2 1mm pushrod wire (300mm)
x1 3mm round carbon rod (150mm min)
m2 screws (6mm, 10mm)
X1 1.5mm Linkage stopper
MINIMUM BUILD VOLUME: 200mm x 200mm x 200mm
Print settings document, templates for cura, bambu studio and prusa slicer included
