Lil Cub

Published: February 20, 2026

1065 downloads
Sale price 229,00 Kč

You are purchasing digital files for 3D printing, not a physical model.
Immediately after payment, you’ll receive your download link in your order confirmation, on your order status page, and via email.

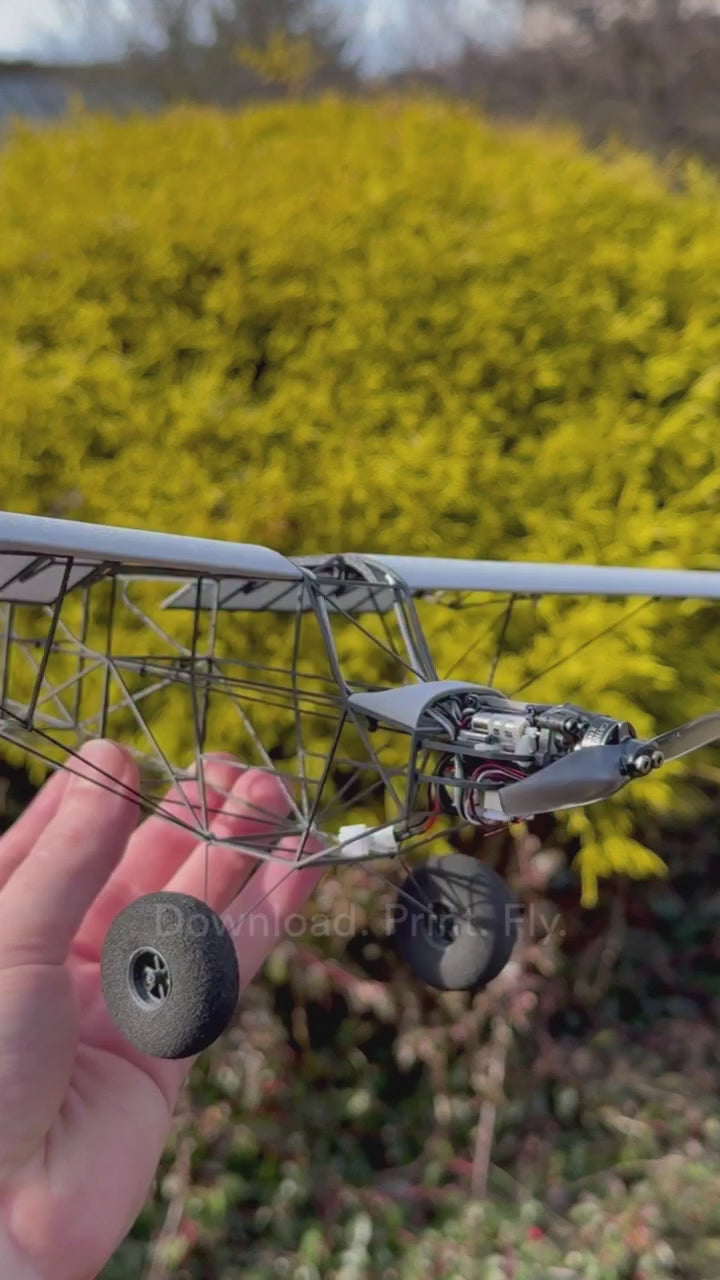

Lilcub is ultra lightweight plane which can be used indoor or outdoor in calm weather. Design combines structural strength of the PC Blend Carbon Fiber and low weight of the Polylight, which also offers many color combinations. Plane has 4 micro linear servos which controlls both ailerons separately, elevator and rudder with steerable rear wheel.

Specifications:
-Wingspan 513mm
-AUW 49,55g

You’ll get:
-Orca slicer ready 3MF files
-STL
-STEP
-PDF user manual with build video and list of the parts with links

You’ll need:
-Motor 1102 8500KV or similar
-ESC+rx Ma-RX42E-F2 (Frsky) or other protocol
-Servo 4x 1,5g linear
-Propeller Gemfan Hurricane 3018
-Battery GNB 1S 300mAh 3.8V HV

  • 5 stars: 3 (50%)
  • 4 stars: 2 (33%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (17%)
A
Alan

Very nice little model, still in the process of building it, all parts now printed and waiting for hardware to be delivered, only down side for me would be the build instructions, I just feel they could be a lot more detailed especially the electronics side, also most of the link's to hardware no longer work and could do with being updated because when searching for the parts myself and the lack of a detailed description of the part in the build instructions I was always worried I was not purchasing the correct items, hopefully I have ordered the correct items and when delivered I can carry on with the build and see how she flies...

B
Bradley A Butler

This was a fun little model to build, I really liked the stick build look with the open framework. Seems intimidating at first but it really built up easily if you go slow and take your time. The instructions are ok but could be better for anyone that is not an experienced rc model builder. I would recommend only printing the frame with prusament pc cf. It is the only blend that prints well with a .4 nozzle. Other brands use a larger CF chop and will not work well on the small nozzle, and a .6 nozzle is too large. Trust me on this.

K
Kevin Cordell

Great micro RC aircraft. Fun for flying in the front yard at dusk!

A
Anonymous

Good files, great instructions. Fun build.

p
pivoda

Moc povedený model

R
Richard

I didn’t realize it was a file to download. I thought is was a paper blueprint
